Product Description

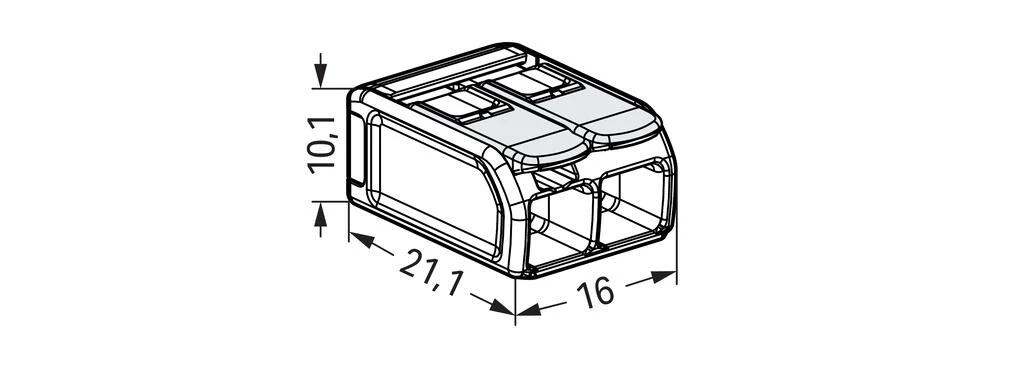

WAGO 221-682 — COMPACT Splicing Connector for Hazardous Areas (Ex e), 2-Conductor, 20-10 AWG
Ex e Rated for Zones 1 & 2. Tool-Free. Lever-Actuated.
The WAGO 221-682 is a 2-conductor COMPACT splicing connector purpose-built for hazardous locations. Certified Ex e ("Increased Safety"), it's rated for Zone 1 and Zone 2 use — retaining all the ease-of-use of WAGO's standard 221 Series LEVER-NUTS® while meeting the demands of working in explosive atmospheres. There are two test slots located under the Lever with the WAGO imprint: one in the conductor entry direction, one on the opposite side.
Pull the lever up, insert a conductor, push the lever back down — done. No tools required.
Key Specifications
| Spec | Value |
|---|---|
| Positions | 2-conductor |
| Wire Range | 20-10 AWG (0.5–6 mm²) — solid, stranded, fine-stranded |
| Wire Connection Method | CAGE CLAMP® / push-in lock |
| Rated Current (Ex e II) | 37A |
| Rated Current (UL, Use Group C) | 30A |
| Rated Voltage | 440V (275V or 440V depending on mounting carrier used) |
| Housing | Transparent, light gray "Ex protection" actuators |
| Operating Temperature | -55°C to +105°C |
| Flammability Rating | UL94 V-2 |
| RoHS Compliant | Yes |
Hazardous Area Approvals
- ATEX — Physikalisch Technische Bundesanstalt, EN IEC 60079-0, Certificate PTB 19 ATEX 1001 U (II 2 G Ex eb IIC Gb / I M 2 Ex eb I Mb)
- IECEx — Physikalisch Technische Bundesanstalt, IEC 60079-0, Certificate IECEx PTB 19.001 1U (Ex eb IIC Gb / Ex eb I Mb)
- AEx (American Ex) — Underwriters Laboratories Inc., UL 60079, Certificate E185892 (AEx eb IIC / Ex eb IIC)
- CCC — CNEX, GB/T 3836.3, Certificate 2020312313000185
- INMETRO — TÜV Rheinland do Brasil, IEC 60079, Certificate TÜV 19.1781 U
General Approvals
- cULus Listed 667F — Underwriters Laboratories Inc., UL 486C, Certificate E69654
- ENEC 05 — DEKRA Certification B.V., EN 60998, Certificate 71-123784
- CB — DEKRA Certification B.V., IEC 60998, Certificate NL-81003
- Lloyd's Register (Marine) — EN 60998, Certificate LR22207029TA
