Product Description
-
What is the 873-902 Luminaire Disconnect? Technical Specifications

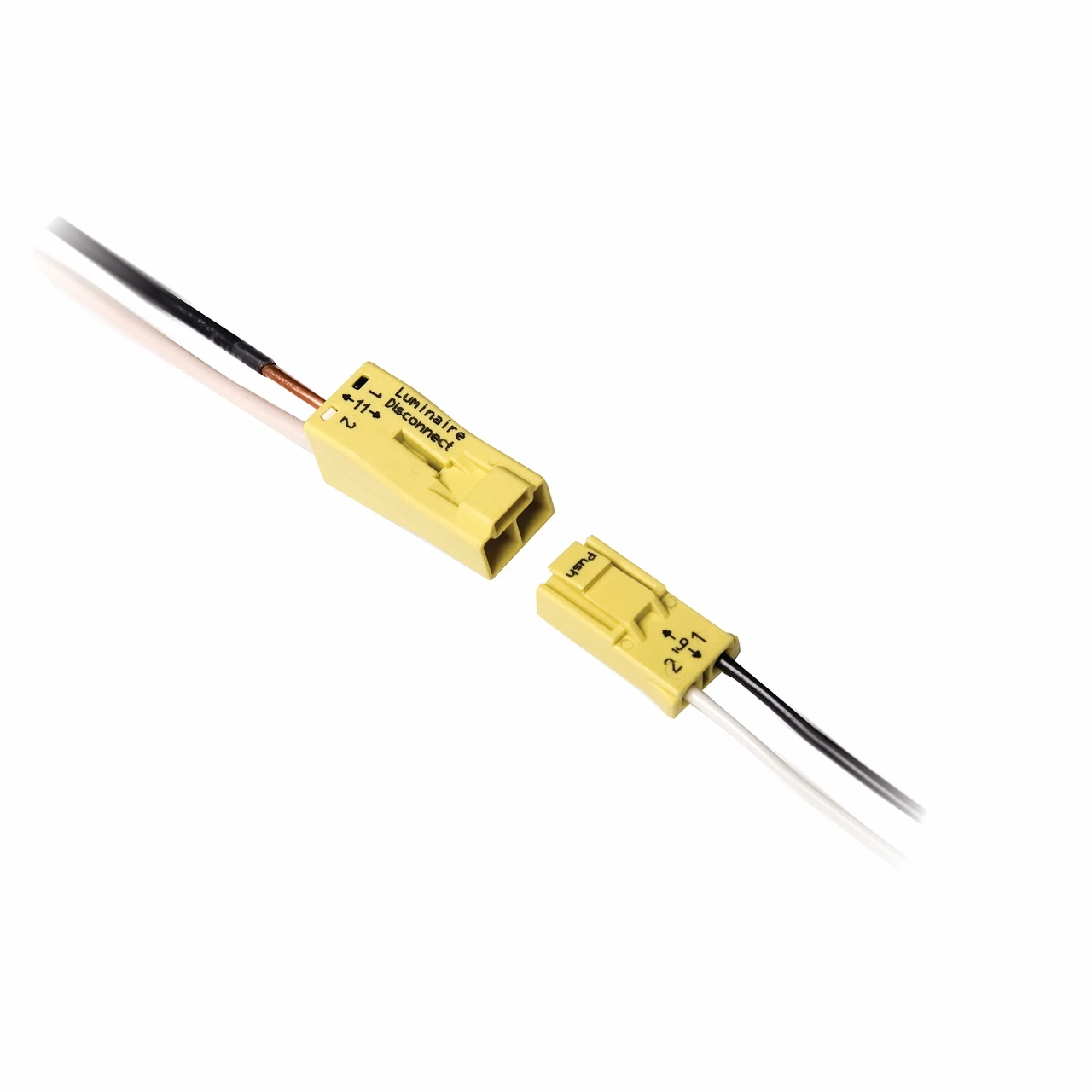

The 873-902 Luminaire Disconnect is a heavy-duty, 2-pole electrical disconnect connector rated for 600V and 20A. Engineered with tool-free push-in wire termination, it provides safe, touch-proof disconnection of lighting ballasts and LED drivers without de-energizing entire branch circuits, ensuring full compliance with NEC and CEC luminaire disconnect safety standards.
Key Benefits & Features
- Touch-Safe Disconnect: Enables safe ballast/driver replacement without risk of electrical shock.
- Fast Push-In Installation: Quick, tool-free conductor insertion reduces labor time in OEM assembly and field retrofits.
- High Electrical Capacity: Rated for up to 600V and 20A across residential, commercial, and industrial lighting applications.
- Bulk Commercial Packaging: 7,500-piece pack ideal for high-volume fixture manufacturing and major commercial contractors.
Technical Specifications
Manufacturer Part Number 873-902 Number of Poles 2-Pole Voltage / Current Rating 600V / 20A Connection 1 (Push-In) Solid: 18–12 AWG | Stranded: 16–12 AWG (Strip: 11–13 mm) Connection 2 (Socket) Solid: 18 AWG (Strip: 9–11 mm) Standards & Compliance UL 2459, UL94 V0, IEC EN60998, IEC/EN EN61984, ETIM EC000458 Package Quantity 7,500 Pack Frequently Asked Questions
Q: Does the 873-902 disconnect meet UL 2459 standards?
A: Yes, the 873-902 is UL Listed under UL 2459 for luminaire disconnects and features a UL94 V0 flame-retardant housing.Q: What wire gauge range is supported?
A: On the push-in termination side, it accepts 18–12 AWG solid wire and 16–12 AWG stranded wire. The socket connection accepts 18 AWG solid wire.Q: Can I replace a ballast or driver without shutting off the whole circuit?
A: Yes. The WAGO 873-902 is a UL 2459 listed, touch-proof luminaire disconnect designed to meet NEC 410.130(G) (410.71 in the 2023 NEC). It lets you isolate and service a single fixture’s ballast or LED driver while the rest of the branch circuit stays on.Q: Does the 873-902 meet NEC requirements for luminaire disconnects?
A: Yes, it is certified to UL 2459 and rated UL94 V-0, satisfying safety requirements for luminaire disconnects under national electrical standards.Q: Can the 873-902 be used for anything other than luminaires?
A: Yes. Although the 873-902 is designed for luminaires, it can be used in any application that calls for a quick disconnect, such as isolating part of a circuit for troubleshooting, as long as it’s used within its rated voltage and amperage.
