Product Description

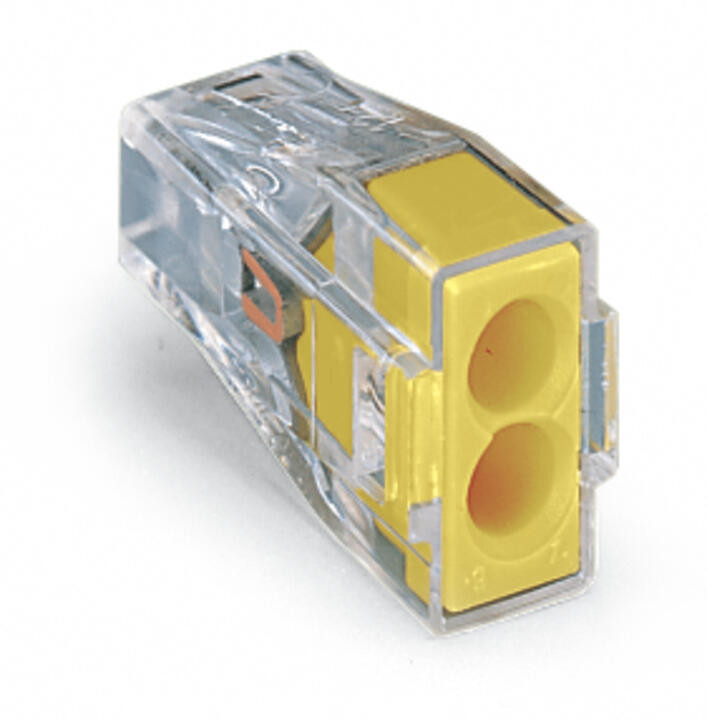

- Junction Box PUSHWIRE® Connector 773-102
- Color: Transparent and Yellow
- Voltage: 600V
- Nominal Current: 20A
- Maximum Operating Temp: 105°C
- Connection Points: 2/1 Potential
- Solid Conductor: .75...2.5mm²/18...12AWG
- Stranded Conductor: 1.5...2.5mm²/16...12AWG
- Conductor Cross-Section: Conductors of the same diameter .75 mm²/18 AWG cross-section is also possible
- Strip Length: 12mm/.47
- Wiring Direction: Side wiring
- H 0.516" x W 0.36" x D 0.768"
- Contact Material: Electrolyte copper (ECu)
- UL: Splicing Wire Connector 667F
- UL: Grounding Equipment 64KA
- Made in China
