Product Description

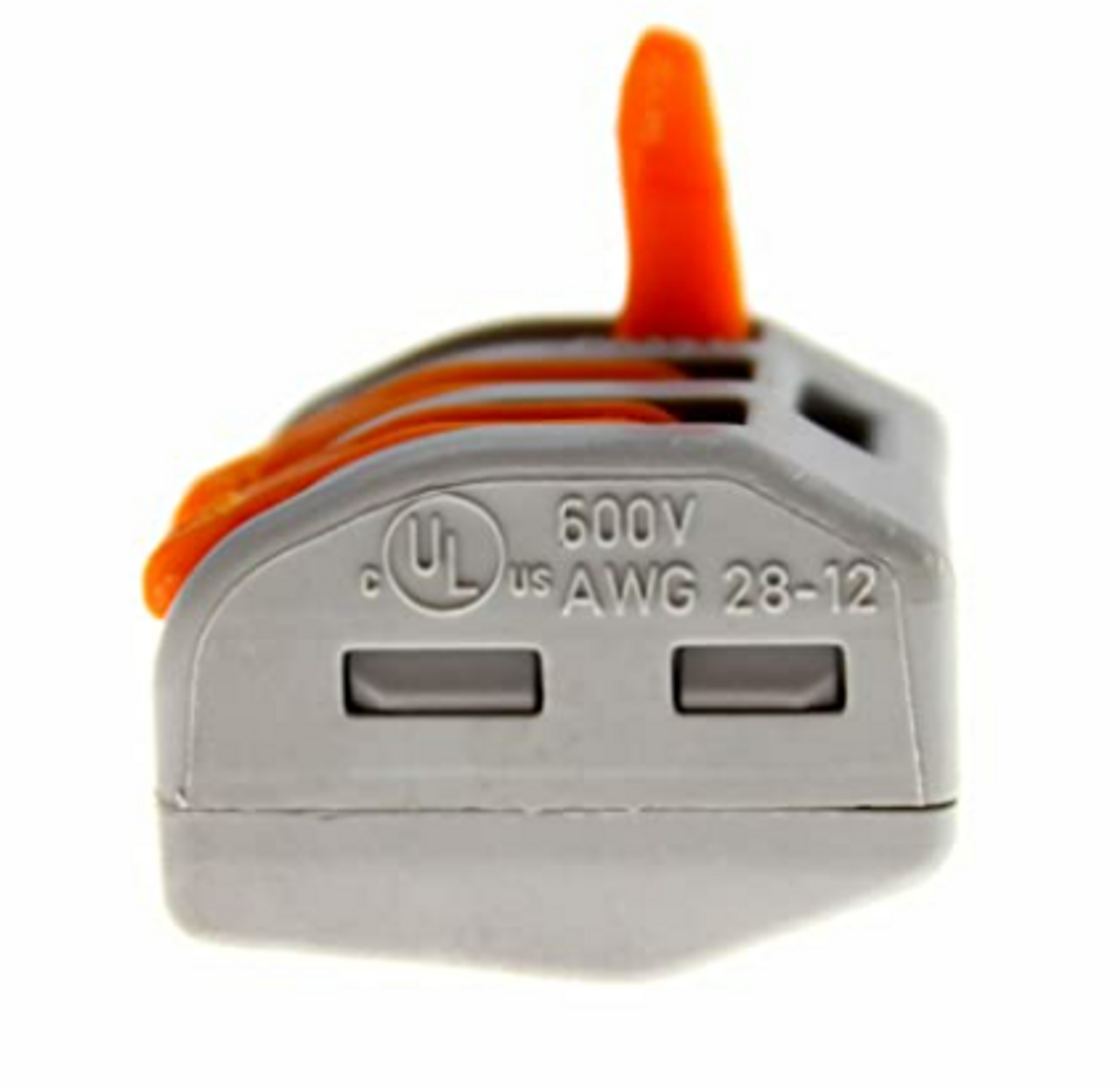

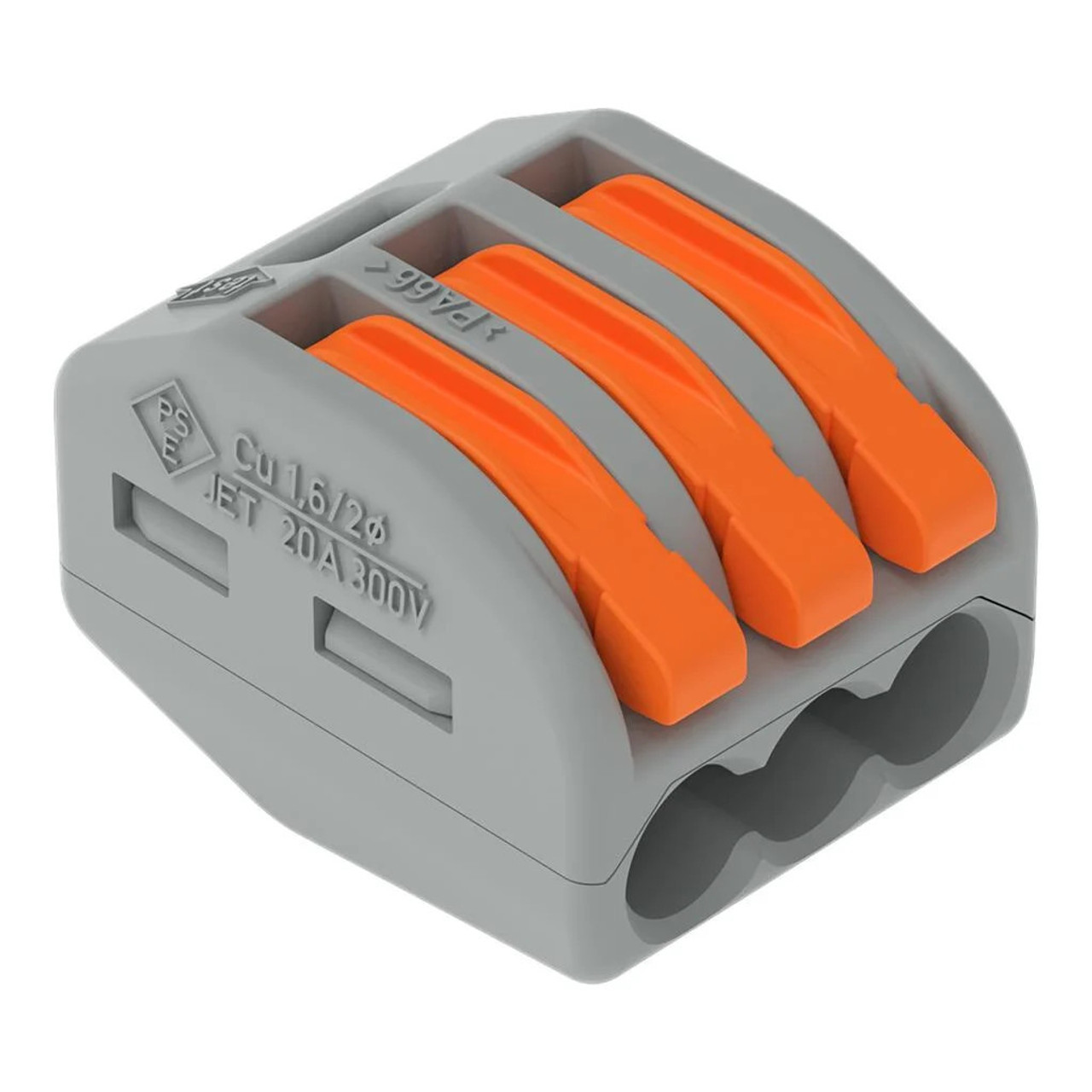

The WAGO 222-413 splicing connector with levers simplifies electrical installations by enabling quick and easy connections of various conductor types. Featuring CAGE CLAMP® technology, this compact connector ensures reliable connections for applications up to 20A and 600V.

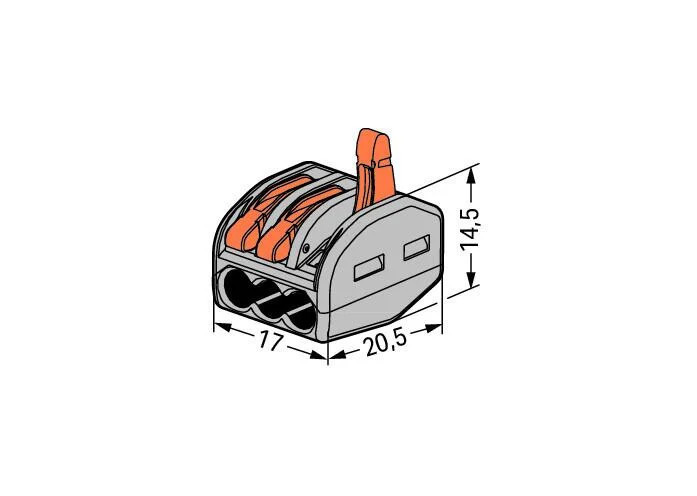

- Splicing Connector with Levers - 3 Port 222-413
- 3 Connection Points and 1 Potentials
- Conductor Material - Copper
- Strip Length - 9...10 mm
- Continuous Temp 85° C
- Fire Load 0.099MJ
- Solid and Stranded .08...2.5mm²/28...12AWG
- Fine Stranded .08...4mm²/28...12AWG
- UL Approval 486C Nominal Voltage 600V / 20 A
- Made in Germany
Product Videos
Custom Field
Product Reviews
1 Review Hide Reviews Show Reviews
-
My go to Connector
This is a great connector for 26 and 28 guage wire.
