Product Description

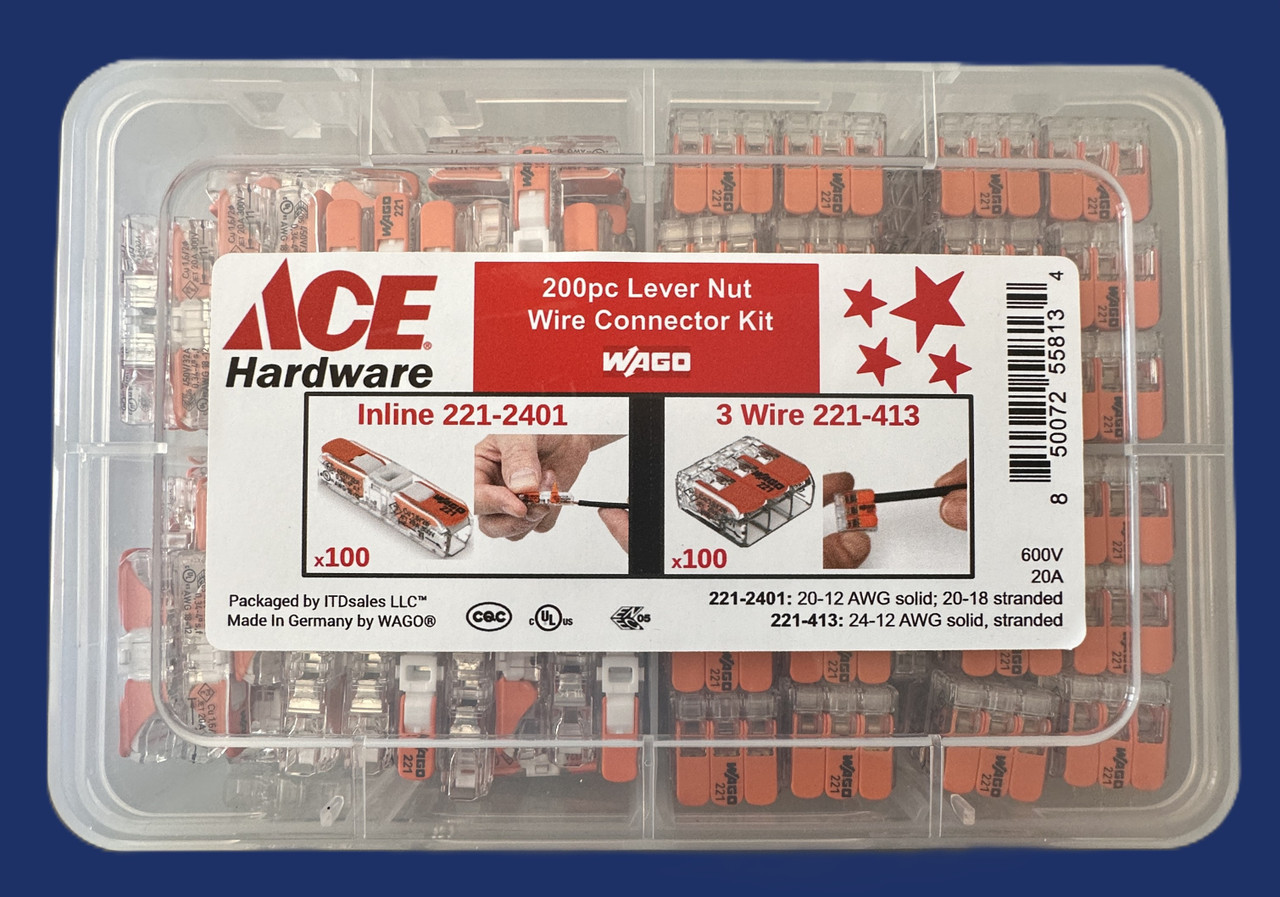

200pc Wire Splicing Connector Kit

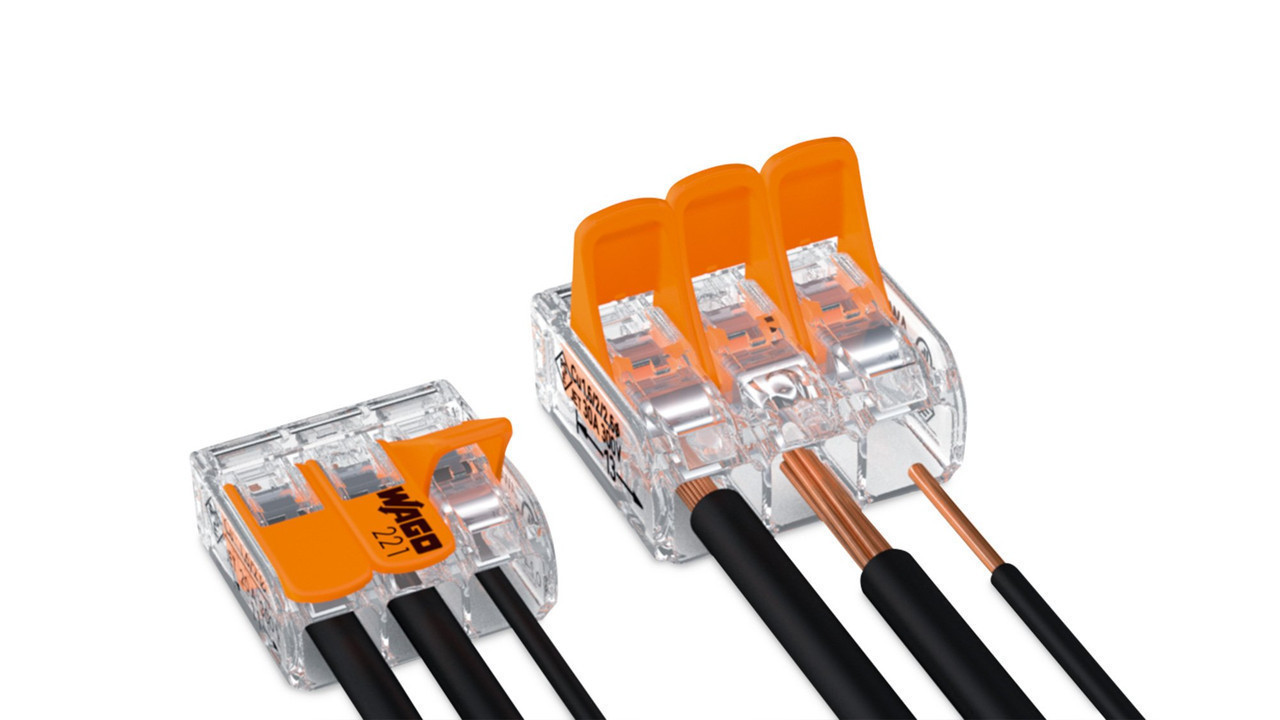

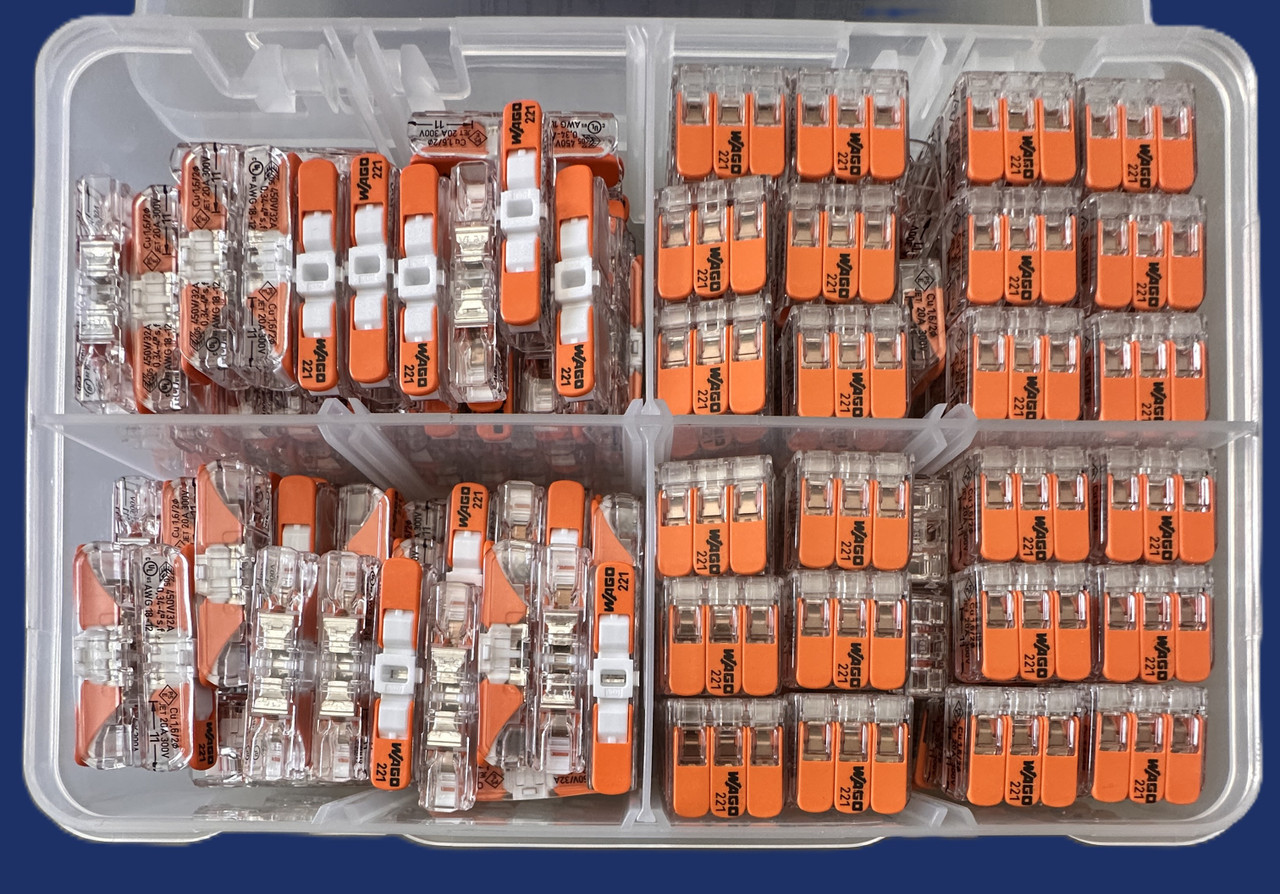

The 200pc Wire Splicing Connector Kit includes 100pieces of 221-413 and 100pieces of the 221-2401 in a convenient reusable plastic case. All connectors connect any combination of solid, stranded, and fine stranded. These Lever-Nuts will make connecting wires faster and more reliable. Minimize space consumption in the junction box by 40% compared to 222 Series. Each connector has clear housing for easy visual confirmation of busbar connection. Each connector has comfort recessed sides featuring the strip length, wire gauge, voltage, amperage, and certifications on the sides. The 221-413 has two test ports, one located on the front, and one located on the back of the connector. The 221-2401 has a test port located on the top in the center of the connector. Every Connector Kit contains an operating instructional card with easy-to-read instructions.
Quantity of Each Connector
- 100x 221-2401 (2 conductor inline)
- 100x 221-413 (3 conductor)
221-413
- Made in Germany
- Solid, Stranded Conductor .2 - 4mm² / 24 - 12 AWG
- Fine Stranded Conductor .14 - 4mm² / 24 - 12 AWG
- UL Approvals UL486C / Voltage and Current (Group C) 600V/20A
- RoHS Compliant
221-2401 Inline Connectors
- Made in Switzerland
- Solid conductor 20 - 12 AWG
Stranded conductor 18 - 12 AWG
Fine-stranded conductor 18 - 12 AW - UL Approved UL486C Voltage and Current (Group C) 600V/20A
- IEC Approved EN 60998
- RoHS Compliant
