Product Description

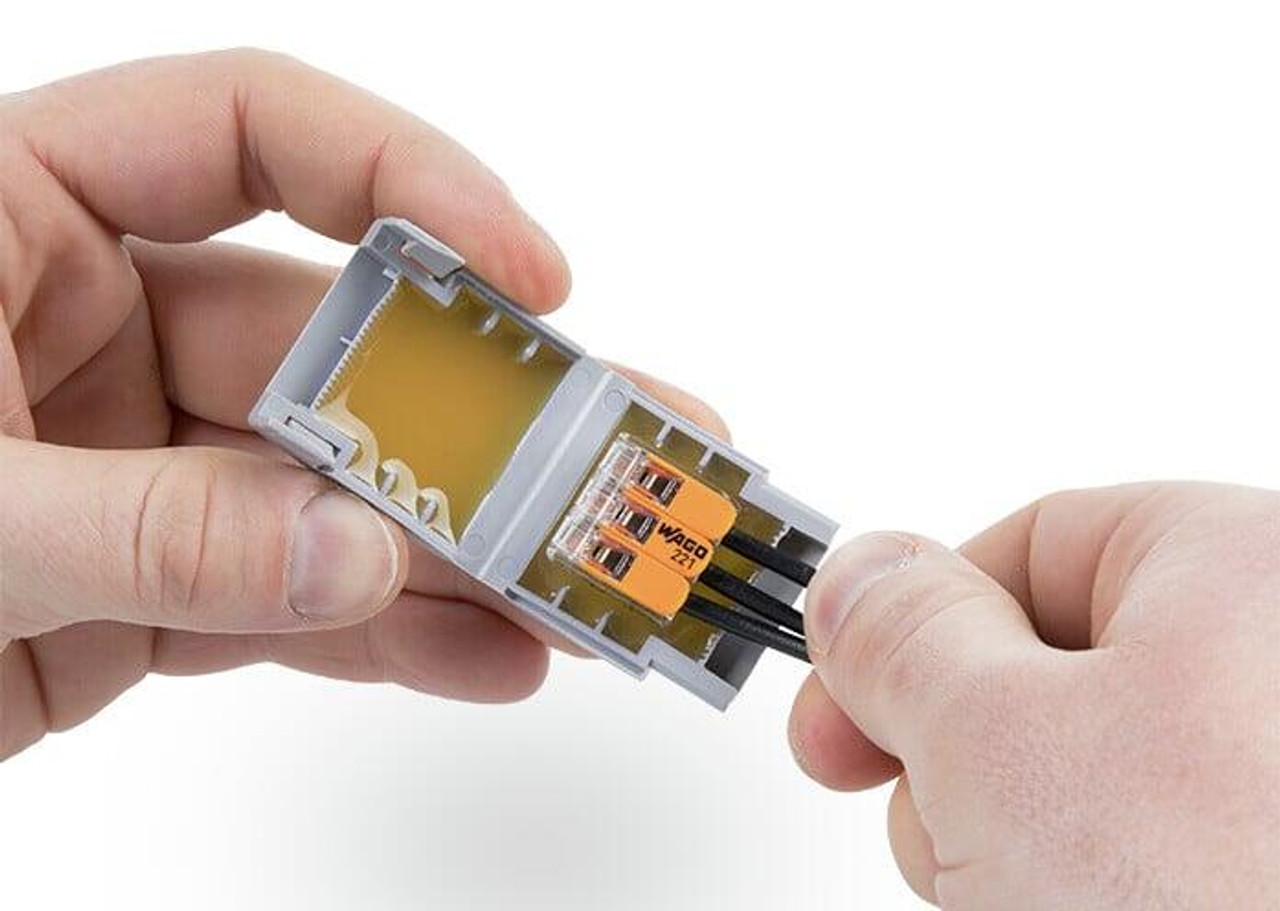

The WAGO 207-1331 Gelbox is a compact and durable solution for protecting electrical connections from moisture. It's designed to fit the 221 and 2773 series connectors, offering reliable protection up to 12 AWG. The silicone-free gel provides a long-lasting seal without limiting applications, making it suitable for various environments. This label-free, gray box is easy to use and offers IPX8-certified protection, ensuring your connections stay secure.
- Size 1 - Small
- Easy, fast and safe to use
- Mounting Type - Flying Leads
- Housing Material - Polypropylene
- Suitable for 4mm²
- Width - 1.26"
- Height - .701"
- Depth - 1.323"
- Ambient Temperature (operation) -55...+85°C
- Ambient Temperature (storage) 0...+40°C
- Can be used immediately and accessed again later
- Ideal for harsh environments
- Silicon-free
- Label-free
- Suitable for indefinite storage
- The complete system consisting of WAGO's gelboxes and splicing connectors has been VDE-tested and IPX8-certified.
- RoHS Compliant
What does IPX8 mean?
The IPX8 protection type means that the connectors in the WAGO Gelbox are completely sealed against water and can also be permanently submerged in water. Basically, ingress protection (IP) codes are standardized according to DIN: the higher the number, the higher the degree of protection. With two-digit numbers such as IP68, the first number describes the protection against contact and dust (0 ... 6), the second the protection against water and humidity (0 ... 9)
Application Examples
- Bathroom installation
- Washing facilities/irrigation systems
- Parking lot lighting
- Farms and garden centers
- Swimming pool areas
- Charging stations and lighting systems in ports
